洛陽百潤斯軸承有限公司交叉圓錐滾子軸承型號(hào)：
|

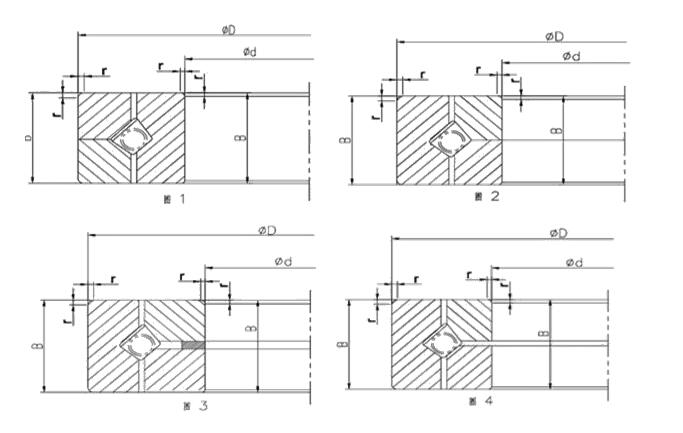

Figure |
Dimensions(mm) |
The |
||||||
| d | D | B | r | Timken | SKF | NACHI | URB | |
| 4 | 150 | 230 | 30 | 1 |
|
BFKB353243/HA4 |
|
|
| 4 | 160 | 240 | 30 | 1.1 |
|
BFKB353240/HA4 |
|
|
| 4 | 200 | 280 | 30 | 1.5 |
|
|
200XRN28 |
|
| 4 | 203.2 | 279 | 31.75 | 1.5 | XR496051 | 616093A |
|
|
| 1 | 203.2 | 279 | 31.75 | 1.5 | XR496052 |
|
|
|
| 4 | 240 | 300 | 30 | 1 |
|
BFKB353203/HA4 |
|
|
| 4 | 250 | 310 | 25 | 1 |
|
BFKB353212/HA4 |
|
|
| 4 | 250 | 350 | 40 | 1.3 |
|
BFKB353215/HA4 | 250XRN35 |
|
| 4 | 300 | 400 | 36.492 | 1.5 | JXR637050 |
|
|
|
| 4 | 300 | 400 | 37 | 1.5 | XR637050 | 616094A | 300XRN50 |
|
| 3 | 300 | 480 | 60 | 1.5 | JXR678054 |
|
|
|
| 4 | 310 | 425 | 45 | 2.5 | JXR652050 | BFKB634097 |
|
|
| 4 | 330 | 457 | 63.5 | 3.3 | XR678052 | 615661A |
|
|
| 4 | 350 | 470 | 50 | 3.3 |
|
BFKB353216/HA4 | 350XRN47 |
|
| 4 | 370 | 495 | 50 | 3.3 | JXR699050 |
|
|
|
| 4 | 400 | 480 | 40 | 1.1 |
|
BFKB353224/HA4 |
|
|
| 4 | 400 | 550 | 60 | 2.5 |
|
BFKB353219/HA4 | 400XRN55 |
|
| 1 | 432.03 | 571.5 | 38.1 | 3.3 | XR736052 |
|
|
|
| 4 | 457.2 | 609.6 | 63.5 | 3.3 | XR766051 | 615894A | 0457XRN060 | XD.10.0457P5 |
| 4 | 424.95 | 614.924 | 65 |
|
XR766052 |
|
|
|
| 4 | 580 | 760 | 80 | 3.3 | XR820060 | 615662A | 580XRN76 | XD.10.0580P5 |
| 1 | 580 | 760 | 80 | 6.4 | XR820061 |
|
|
|
| 4 | 600 | 830 | 80 | 6.4 | XR836050 |
|
600XRN83 |
|
| 2 | 685.8 | 914.4 | 79.375 | 6.4 | XRA844050 |
|
|
|
| 4 | 685.8 | 914.4 | 79.375 | 3.3 | XR855053 | 615659A | 0685XRN091 | XD.10.0686P5 |
| 1 | 685.8 | 914.4 | 79.375 |
|
XR855056 |
|
|
|
| 1 | 901.7 | 1117.6 | 82.555 | 3.3 | XR882054 |
|
|
|
| 4 | 901.7 | 1117.6 | 82.555 | 3.3 | XR882055 | 615895A | 0901XRN112 | XD.10.0902P5 |
| 2 | 939.8 | 1117.6 | 82.55 | 3.3 | XR882058 |
|
|
|
| 4 | 950 | 1170 | 85 | 3 |
|
BFKB353251/HA4 |
|
|
| 4 | 1028.7 | 1327.15 | 114.3 | 3.3 | XR889058 | BFKB353282/HA4 | 1028XRN132 | XD.10.1029P5 |
| 1 | 1028.7 | 1327.15 | 95.25 | 3.3 | XR889059 |
|
|
|
| 3 | 1028.7 | 1327.15 | 114.3 | 3.3 | XR889060 |
|
|
|
| 4 | 1270 | 1524 | 95.25 | 1.8 |
|
615897A |
|
|
| 4 | 1549.4 | 1828.8 | 101.6 | 3.3 | XR897051 | 615898A |
|
XD.10.1549P5 |
| 4 | 1879.6 | 2197.1 | 101.6 | 5.4 | XR903054 | 615899A |
|
XD.10.1880P5 |
| 4 | 2463.8 | 2819.4 | 114.3 | 5.4 |
|
634078A |
|
|
